Introduction:
This machine is suitable for mixing, kneading and dispersing chemical raw materials such as plastic, rubber, synthetic rubber, hot melt adhesive and various low viscosity materials.
Working principle:
The two rotors in the mixing chamber rotate under a certain speed ratio, and the material from the feeding port is clamped into the roll gap and squeezed and sheared by the rotor. After passing through the roll gap, it hits the "W" sharp edge of the mixing chamber and is divided into two parts. Respectively, along the gap between the front and rear chamber walls and the rotors the material get back to the top. The material is sheared and mixed under a certain pressure and temperature in the closed mixing chamber to make the formula material fully disperse and plasticize, so that the formula can exert the best effect.

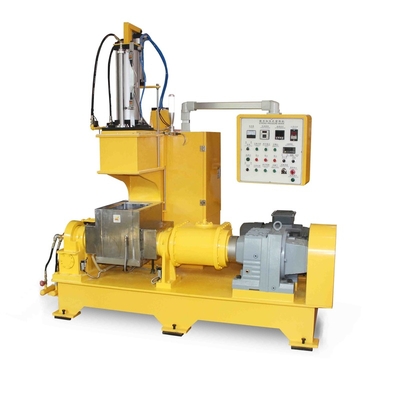

SPECIFICATIONS FOR XH-420-10 LAB BANBURY MIXER | ||||||
Technical Parameter | Mixing chamber volume | 10L | ||||
Rotation angle | 110℃ | |||||
Drive motor | 11KW | |||||
Flip motor | 0.75KW | |||||
Rotor speed (front and rear) | 40/31r min（frequency） | |||||
Heating method | electrical heating | |||||
Cooling system | running water cooling | |||||
Temperature range | room temperature - 300℃ | |||||
Air source pressure | 0.3-0.5mpa | |||||
Power supply | 3phase, AC380V | |||||
Name: Control System
Brand: XH
Original: China
Key control system, easy to operate
The mixing chamber is "W" shaped and uses a "M" shaped compression cap to form a fully enclosed mixing system. The mixing chamber
is made of high-carbon steel, and the surface is hard chrome-plated to increase the hardness, ensuring that the chamber is hard and wear-resistant. The mixing chamber can be turned over 110 degrees, and the mixing
shaft has the functions of forward rotation and reverse rotation, which makes the discharge more convenient and quick.
Packaging | ||
Size | 1900×1300×1500mm | |
Weight | 1.2 T | |
Packaging Details | ||
